《PyTorch深度学习实践》13. 循环神经网络（高级篇）

发表于 | | 阅读次数：

循环神经网络（高级篇）

例：人名分类

数据准备

根据人名的英文拼写判断人所在的国家，数据形式如下：

image-20200927161615676

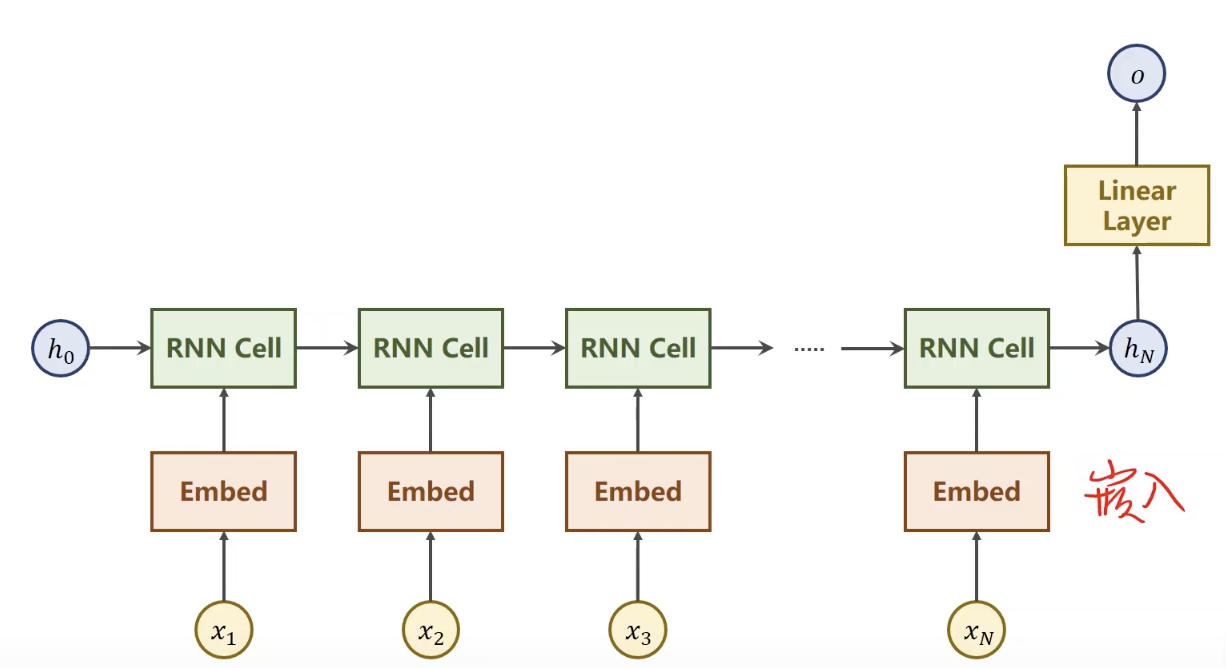

这个问题是序列输入，而只有一个输出，若采用RNN，模型形式如下：

image-20200927161458425

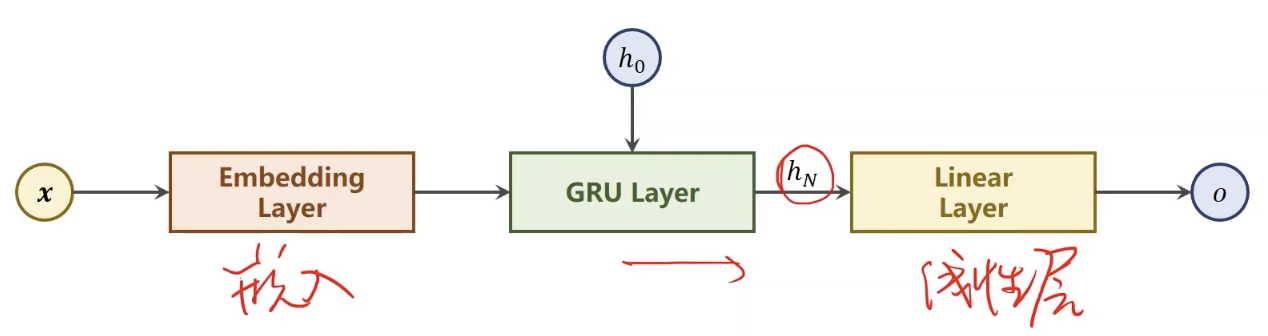

采用GRU的话，模型形式如下：

image-20200927161924466

数据处理：

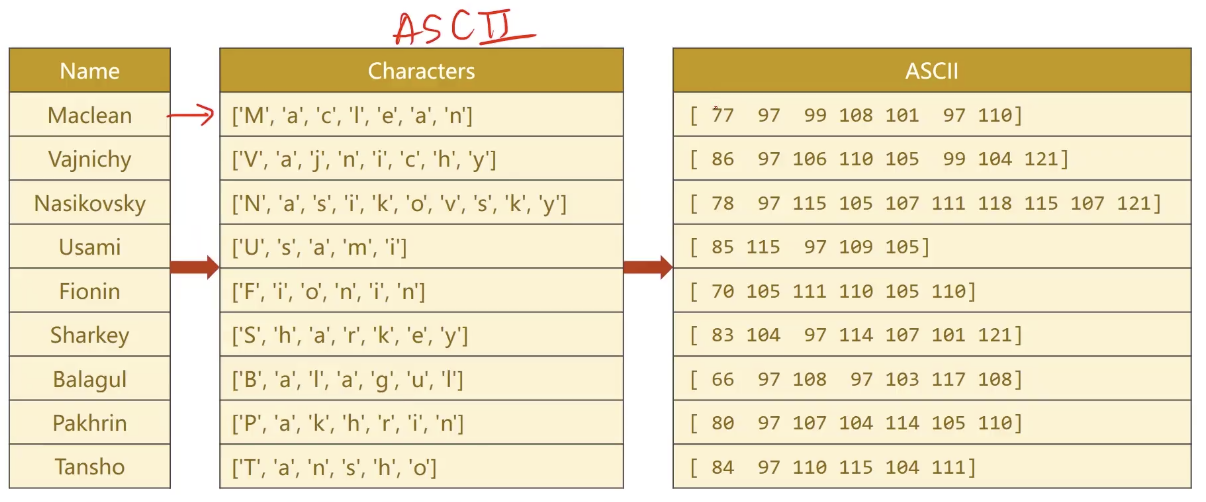

名字序列转ASCII码值，进一步表示成one-hot

image-20200927200005921

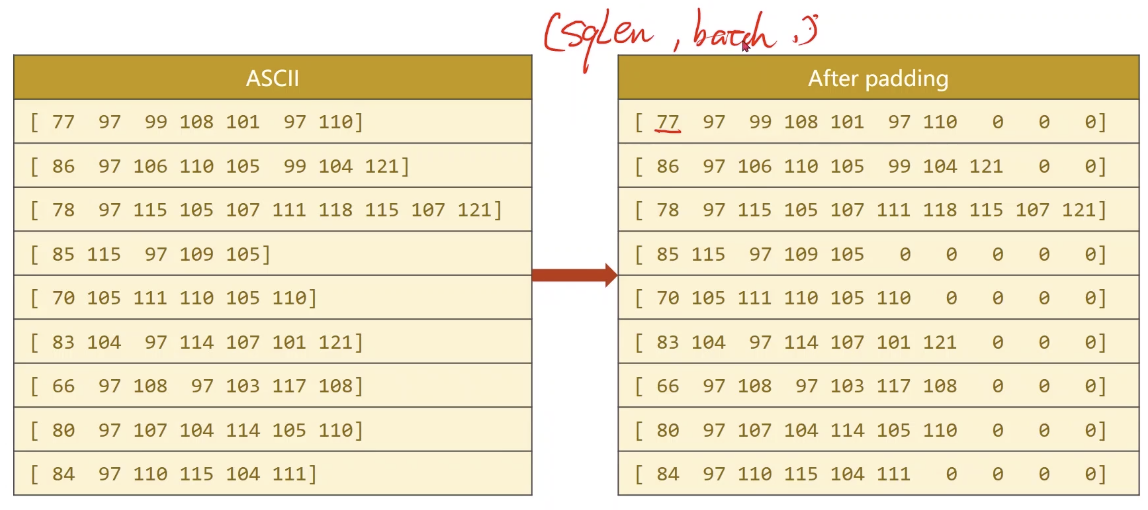

对ASCII码表示的输入做padding，统一长度好形成一个张量

image-20200927200047083

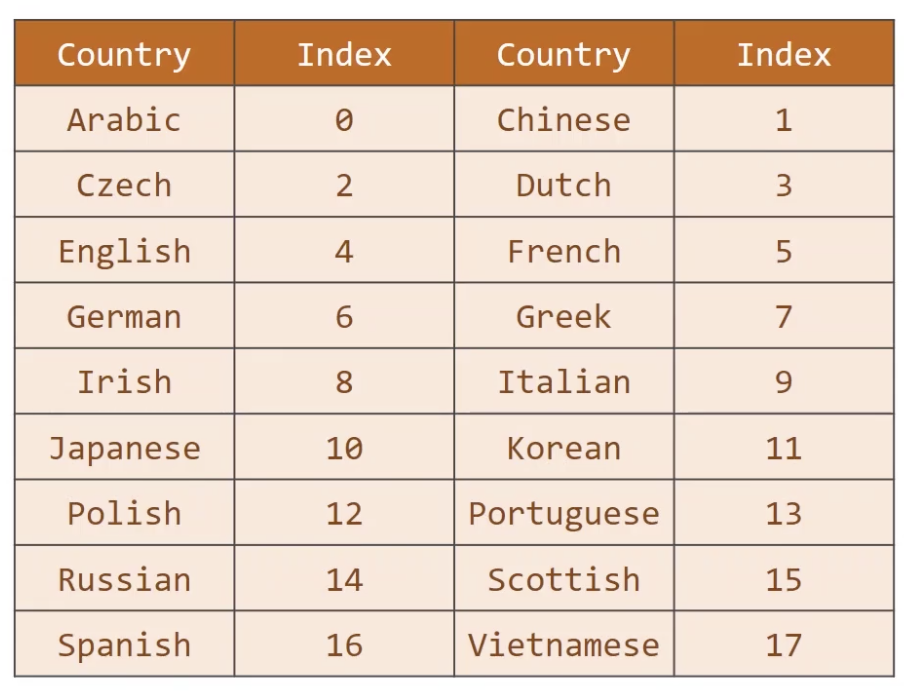

国家表示成数字label

image-20200927200209709

模型与代码

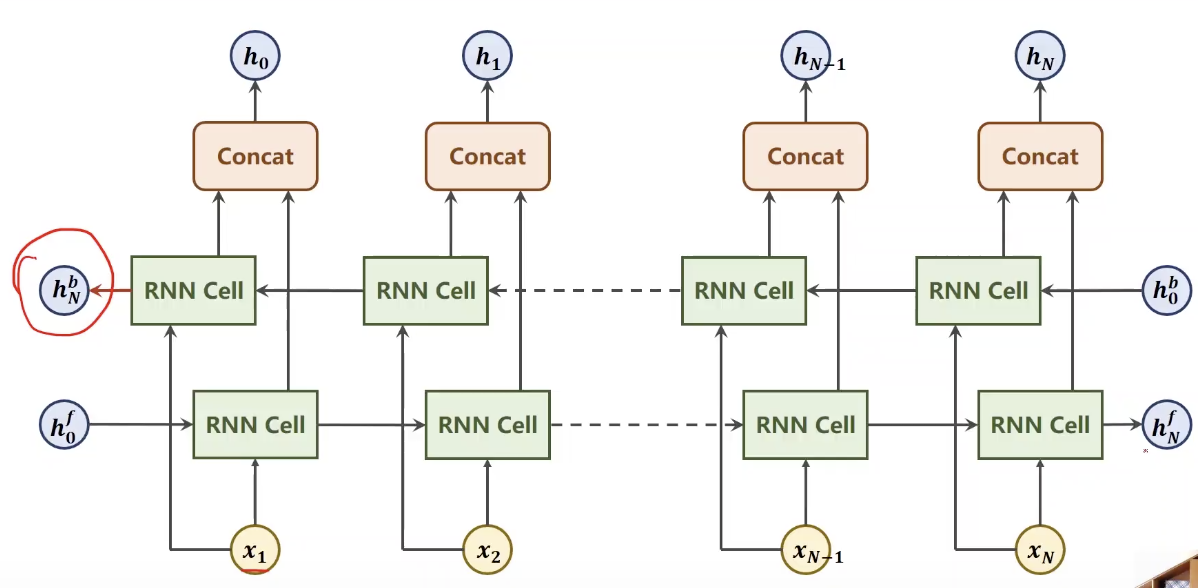

双向神经网络图：

image-20200927214633630

注：$hidden=[h_N^f,h_N^b]$

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
class NameDataset(Dataset):
    def __init__(self, is_train_set=True):
        filename = 'data/names_train.csv.gz' if is_train_set else 'data/names_test.csv.gz'
        with gzip.open(filename, 'rt') as f:
            reader = csv.reader(f)
            rows = list(reader)
        self.names = [row[0] for row in rows]
        self.len = len(self.names)
        self.countries = [row[1] for row in rows]
        self.country_list = list(sorted(set(self.countries)))
        self.country_dict = self.getCountryDict()
        self.country_num = len(self.country_list)

    def __getitem__(self, index):
        return self.names[index], self.country_dict[self.countries[index]]

    def __len__(self):
        return self.len

    def getCountryDict(self):
        country_dict = dict()
        for idx, country_name in enumerate(self.country_list, 0):
            country_dict[country_name] = idx
        return country_dict

    def idx2country(self, index):
        return self.country_list[index]

    def getCountriesNum(self):
        return self.country_nu
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
class RNNClassifier(torch.nn.Module):
    def __init__(self, input_size, hidden_size, output_size, n_layers=1, bidirectional=True):
        super(RNNClassifier, self).__init__()
        self.hidden_size = hidden_size
        self.n_layers = n_layers
        self.n_directions = 2 if bidirectional else 1

        # The input of Embedding Layer with shape: (seqLen, batchSize)
        # The ouput of Embedding Layer with shape: (seqLen, batchSize, hiddenSize)
        self.embedding = torch.nn.Embedding(input_size, hidden_size)
        self.gru = torch.nn.GRU(hidden_size, hidden_size, n_layers,
                                bidirectional=bidirectional)
        self.fc = torch.nn.Linear(hidden_size * self.n_directions, output_size)

    def _init_hidden(self, batch_size):
        hidden = torch.zeros(self.n_layers * self.n_directions,
                             batch_size, self.hidden_size)
        return create_tensor(hidden)

    def forward(self, input, seq_lengths):
        # input shape : B x S -> S x B
        input = input.t()
        batch_size = input.size(1)

        hidden = self._init_hidden(batch_size)
        embedding = self.embedding(input)

        # pack them up
        gru_input = pack_padded_sequence(embedding, seq_lengths) # 压缩有padding的embedding，提高运算效率

        output, hidden = self.gru(gru_input, hidden)
        if self.n_directions == 2:
            hidden_cat = torch.cat([hidden[-1], hidden[-2]], dim=1)
        else:
            hidden_cat = hidden[-1]
        fc_output = self.fc(hidden_cat)
        return fc_output
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
def trainModel():
    total_loss = 0
    for i, (names, countries) in enumerate(trainloader, 1):
        inputs, seq_lengths, target = make_tensors(names, countries)
        output = classifier(inputs, seq_lengths)
        loss = criterion(output, target)
        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

        total_loss += loss.item()
        if i % 10 == 0:
            print(f'[{time_since(start)}]Epoch {epoch}', end='')
            print(f'[{i * len(inputs)}/{len(trainset)}]', end='')
            print(f'loss={total_loss / (i * len(inputs))}')
    return total_loss
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
def testModel():
    correct = 0
    total = len(testset)
    print("evaluating trained model ...")
    with torch.no_grad():
        for i, (names, countries) in enumerate(testloader, 1):
            inputs, seq_lengths, target = make_tensors(names, countries)
            output = classifier(inputs, seq_lengths)
            pred = output.max(dim=1, keepdim=True)[1]
            correct += pred.eq(target.view_as(pred)).sum().item()

        percent = '%.2f' % (100 * correct / total)
        print(f'Test set: Asccuracy {correct}/{total} {percent}%')

    return correct / total

在Colab上运行

课程来源：《PyTorch深度学习实践》完结合集
