《PyTorch深度学习实践》12. 循环神经网络（基础篇）

发表于 | | 阅读次数：

循环神经网络（基础篇）

RNN适合用来解决序列问题

image-20200926142919033

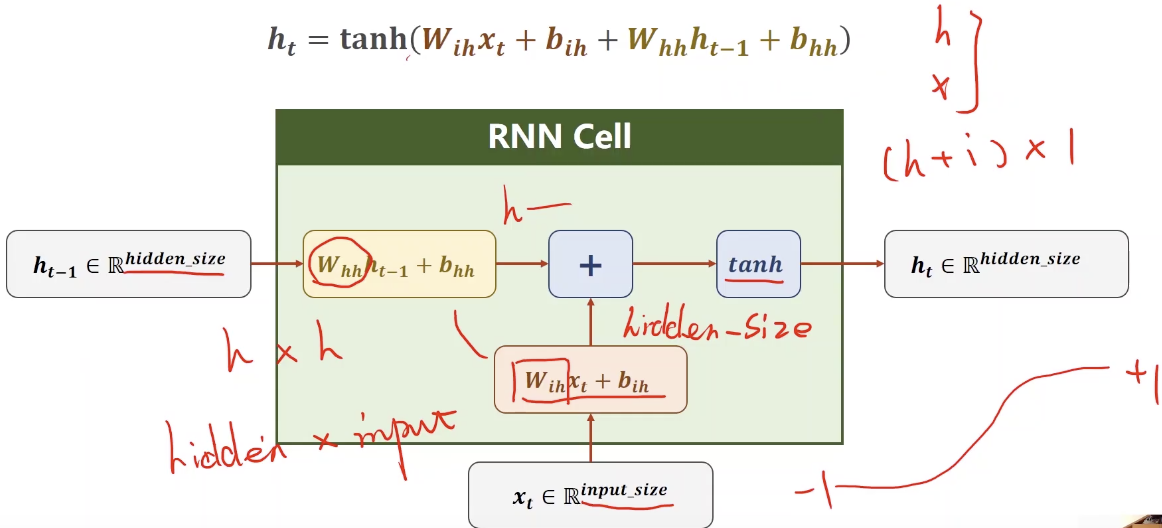

RNN Cell和RNN

image-20200926144353929

1
2
cell = torch.nn.RNN(input_size=input_size, hidden_size=hidden_size, num_layers=num_layers) # num_layers指RNN的隐层数目
out, hidden = cell(inputs, hidden)

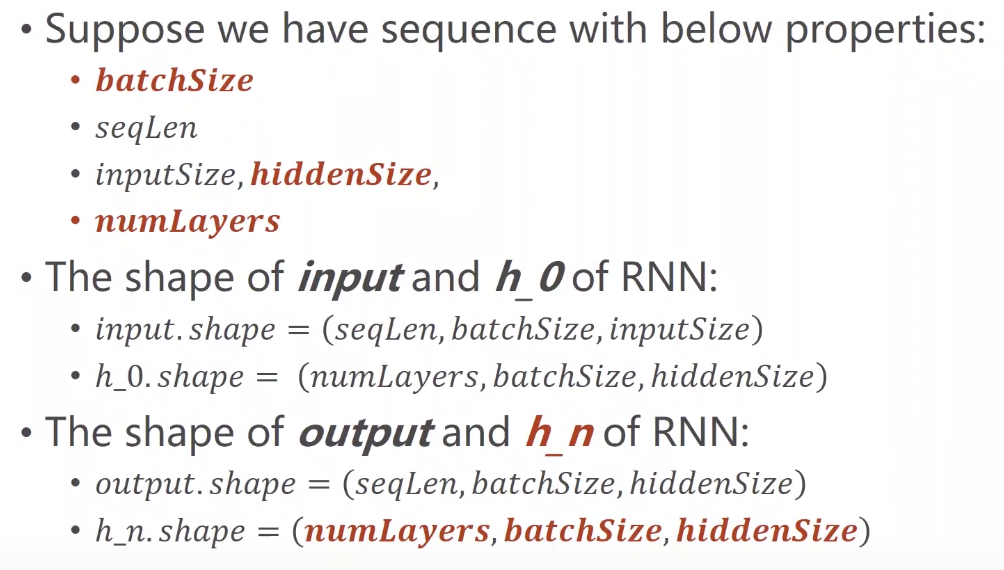

具体输入输出的说明：

image-20200926151359710

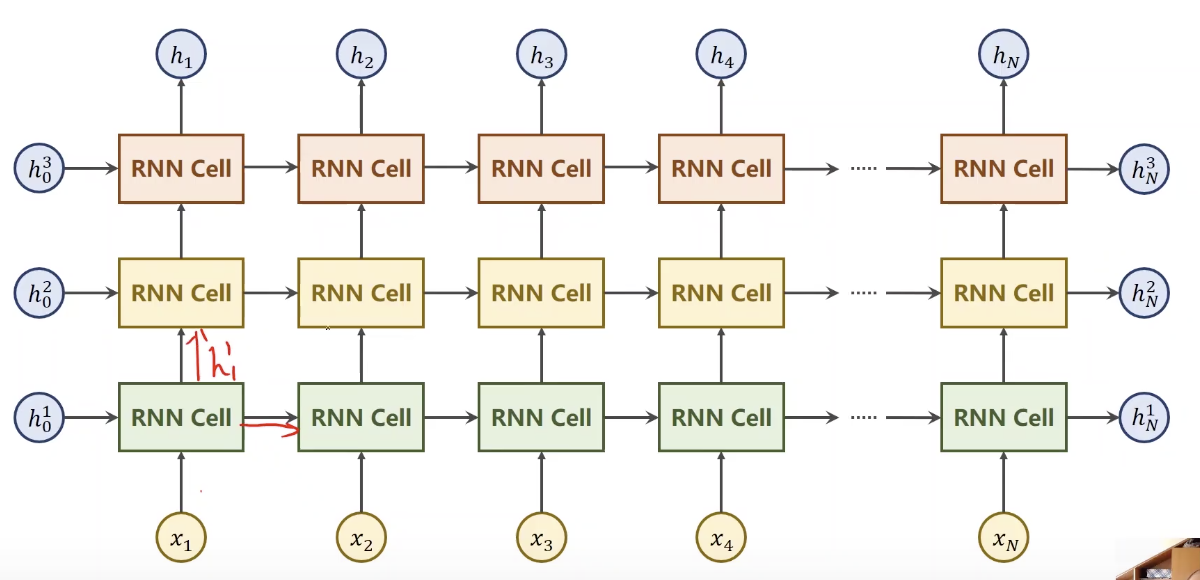

num_layers=3时的情况：

image-20200926151449627

RNN的输入输出向量表示

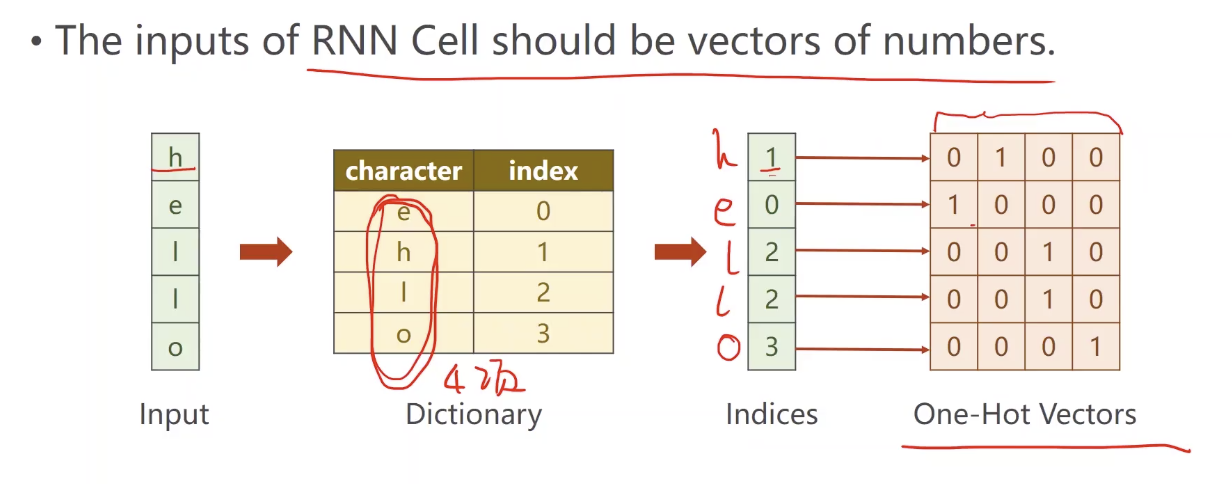

采用one-hot向量来表示文本

image-20200926153240847

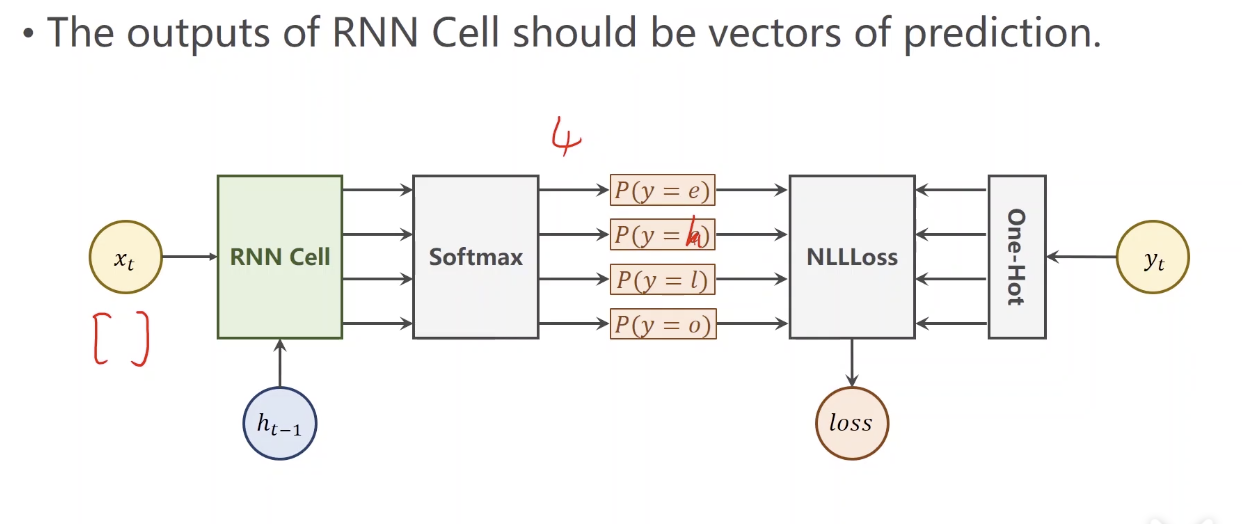

对于每个RNN Cell的损失，可以用交叉熵来计算：

image-20200926153640783

代码表示

采用RNN Cell

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
class Model(torch.nn.Module):
    def __init__(self, input_size, hidden_size, batch_size):
        super(Model, self).__init__()
        # self.num_layers = num_layers
        self.batch_size = batch_size
        self.input_size = input_size
        self.hidden_size = hidden_size
        self.rnncell = torch.nn.RNNCell(input_size=self.input_size,
                                        hidden_size=self.hidden_size)

    def forward(self, input, hidden):
        hidden = self.rnncell(input, hidden)
        return hidden

    def init_hidden(self):
        return torch.zeros(self.batch_size, self.hidden_size)

net = Model(input_size, hidden_size, batch_size)

训练过程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
criterion = torch.nn.CrossEntropyLoss()
optimizer = torch.optim.Adam(net.parameters(), lr=0.1)

for epoch in range(15):
    loss = 0
    optimizer.zero_grad()
    hidden = net.init_hidden()
    print('Predicted string: ', end='')
    for input, label in zip(inputs, labels): # Shape of inputs: (seqLen, batchSize, inputSize)
                                          # Shape of input: (batchSize, inputSize)
        hidden = net(input, hidden)

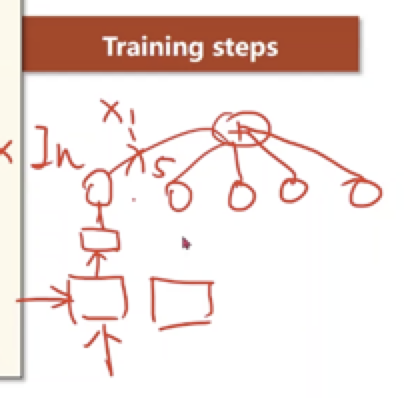

        loss += criterion(hidden, label)    # 注意：这里没有用.item()，而是直接构造的计算图
                                           # 因为这里算的loss是多个输出联合的loss，具体如下图
        _, idx = hidden.max(dim=1)
        print(idx2char[idx.item()], end='')
    loss.backward()
    optimizer.step()
    print(', Epoch [%d/15] loss=%.4f' % (epoch+1, loss.item()))

image-20200926163316495

直接采用RNN

相比于使用RNN Cell要简化了不少，主要是不需要手动循环处理每个输入了，而是直接给出开头的$h$和全部的输入，一次调用即可。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
class Model(torch.nn.Module):
    def __init__(self, input_size, hidden_size, batch_size, num_layers=1):
        super(Model, self).__init__()
        self.num_layers = num_layers
        self.batch_size = batch_size
        self.input_size = input_size
        self.hidden_size = hidden_size
        self.rnn= torch.nn.RNN(input_size=self.input_size,
                               hidden_size=self.hidden_size,
                               num_layers=num_layers)

    def forward(self, input):
        hidden = torch.zeros(self.num_layers,
                             self.batch_size,
                             self.hidden_size)
        out, _ = self.rnn(input, hidden)
        return out.view(-1, self.hidden_size)

net = Model(input_size, hidden_size, batch_size, num_layers)

训练过程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
criterion = torch.nn.CrossEntropyLoss()
optimizer = torch.optim.Adam(net.parameters(), lr=0.05)

for epoch in range(15):
    optimizer.zero_grad()
    outputs = net(inputs) # Size of Inputs: (seqLen, batchSize, inputSize
    loss = criterion(outputs, labels) # Size of Outputs: (seqLen * batchSize * 1)
    loss.backward()
    optimizer.step()

    _, idx = outputs.max(dim=1)
    idx = idx.data.numpy()
    print('Predicted: ', ''.join([idx2char[x] for x in idx]), end='')
    print(', Epoch [%d/15] loss = %.3f' % (epoch + 1, loss.item()))

Embedding

One-hot的一些问题：

  • 维度过高
  • 矩阵稀疏
  • 硬编码

解决方案：Embedding

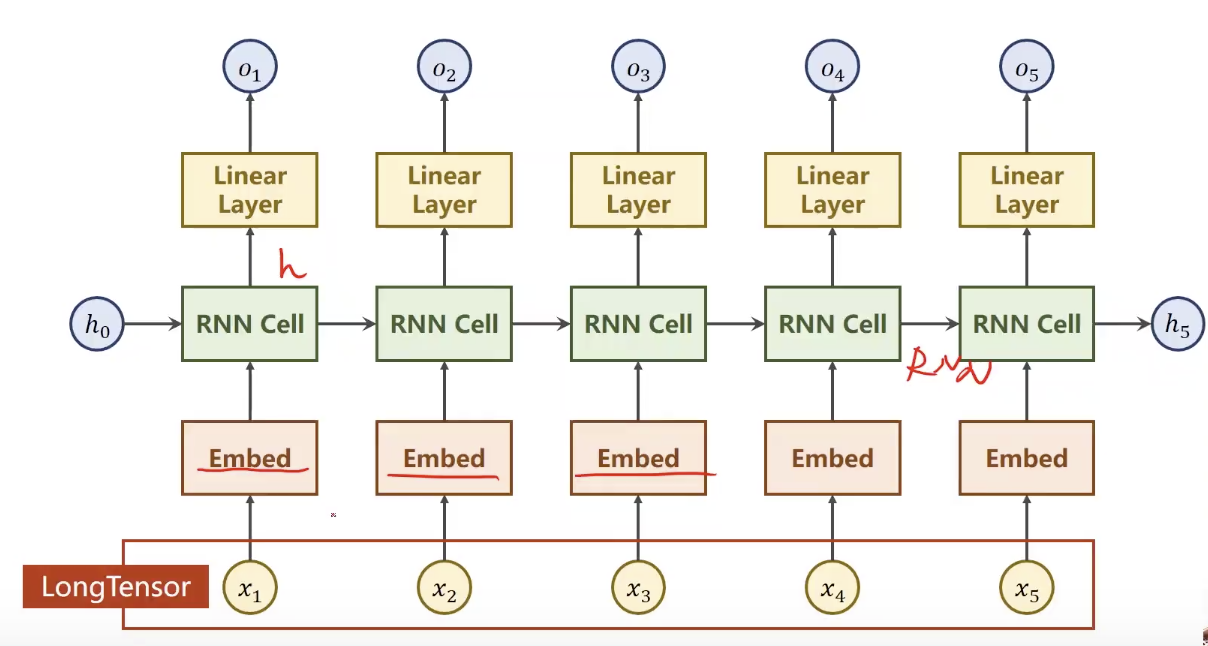

加入Embedding后的网络：

image-20200926163655344

其中Linear Layer是用来保证输出和label的维度一致的。

添加了Embedding层和线性层的模型代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
class Model(torch.nn.Module):
    def __init__(self):
        super(Model, self).__init__()
        self.emb = torch.nn.Embedding(input_size, embedding_size)
        self.rnn = torch.nn.RNN(input_size=embedding_size,
                                hidden_size=hidden_size,
                                num_layers=num_layers,
                                batch_first=True)
        self.fc = torch.nn.Linear(hidden_size, num_class)

    def forward(self, x):
        hidden = torch.zeros(num_layers, x.size(0), hidden_size)
        x = self.emb(x) # (batch, seqLen, embeddingSize)
        x, _ = self.rnn(x, hidden)
        x = self.fc(x)
        return x.view(-1, num_class)

net = Model()

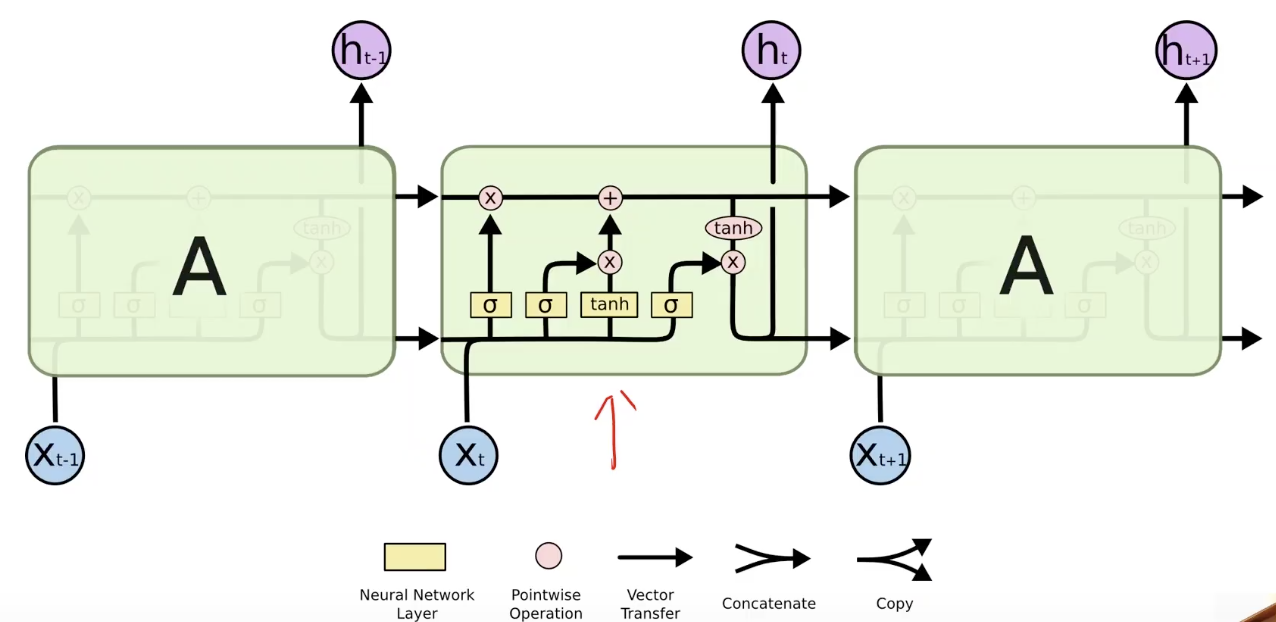

LSTM和GRU

image-20200926170043773

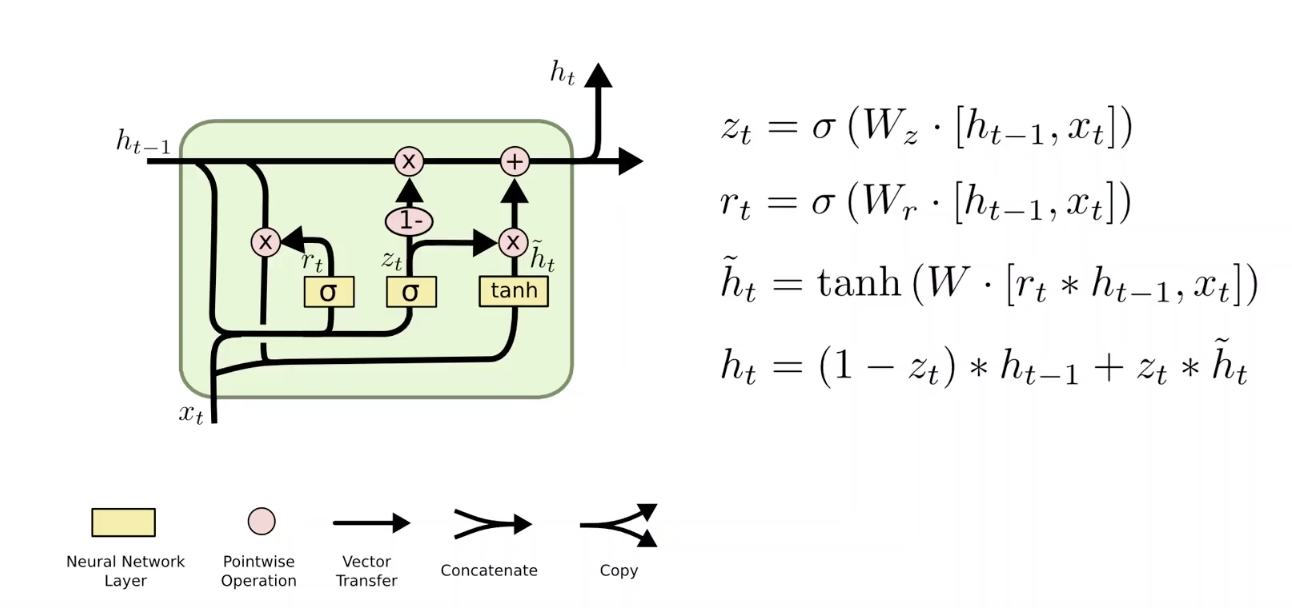

image-20200926170400613

GRU运算效率要高一些

在Colab上运行

课程来源：《PyTorch深度学习实践》完结合集
